Rosenberg Plug EC / ECM Fan GEN 3. GKHR 560-CIB.180.6IF IE (Model N86-56305)

Rosenberg Plug EC Fan. Model N86-56305

Note: NOT AVAILABLE FOR SHIPPING TO USA

Type: GKHR 560-CIB.180.6IF IE GEN 3
Article-No.: N86-56305

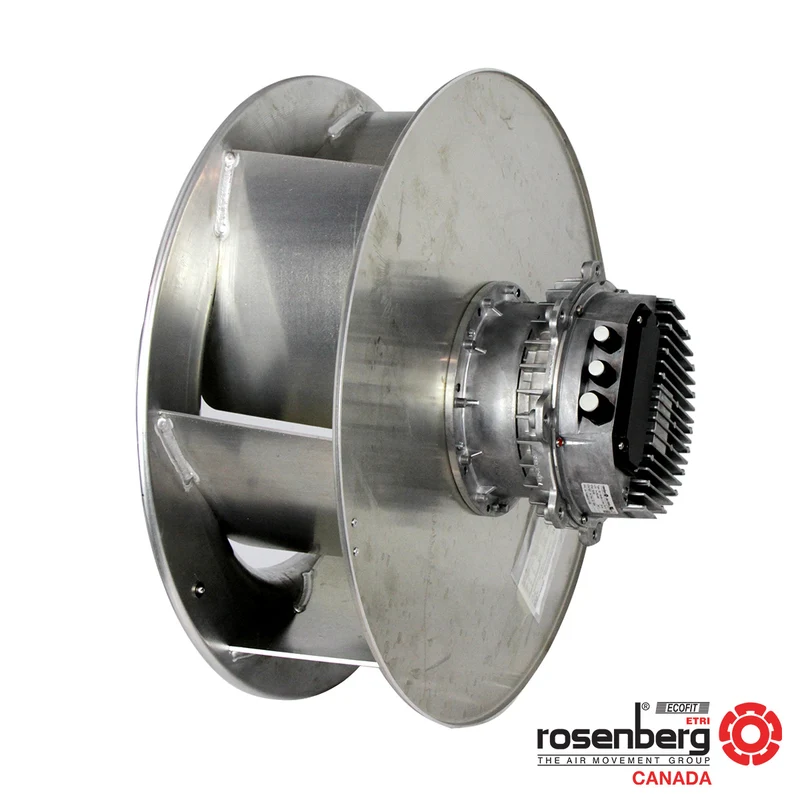

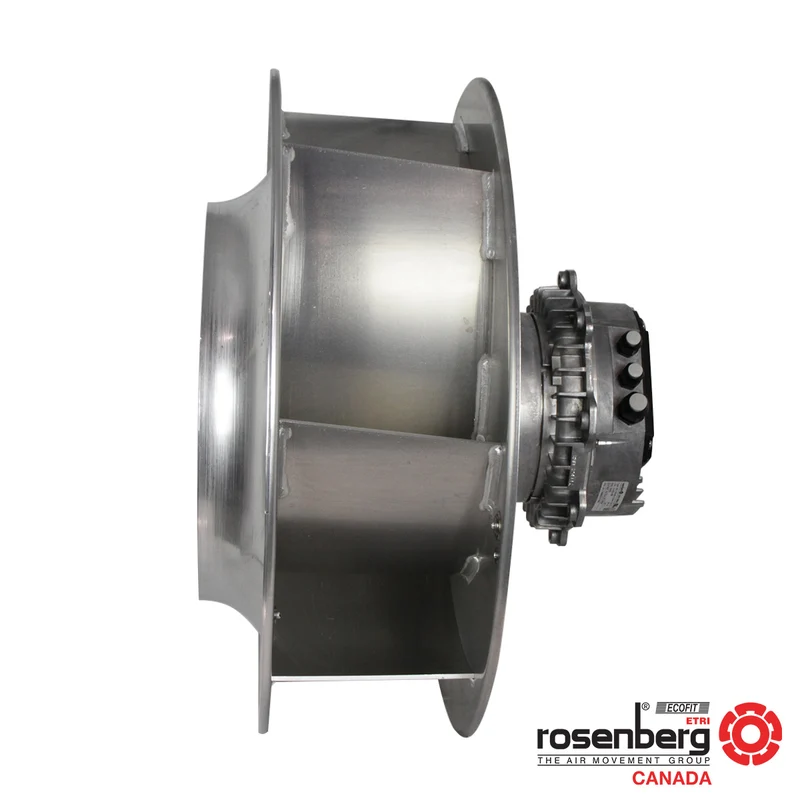

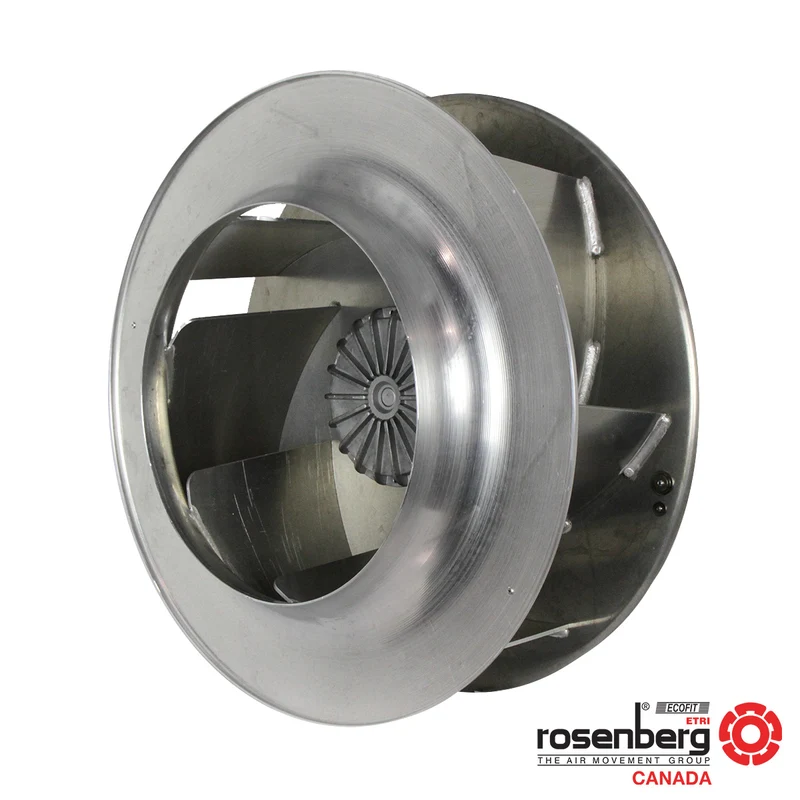

EC-Plug Fan with backward-curved impeller. Impeller made of aluminum (AlMg3) with 7 backward-curved blades and an efficiency-optimized circumferential diffuser. Sound optimized. Pressure-orientated behaviour. Fluidic optimized inlet cone made of galvanized sheet metal. Status LED integrated. 100% speed controllable with integrated Motor Protection and Soft Start.

Applications: Air Handling Units / Wind Power / Railway / Compressors / Transformer cooling

Nominal Data: Voltage [U] 3~200-480 V Frequency [f] 50/60 Hz Input power [P] 4.05 kW Current [I] 6.2 / 5.4 A Speed [n] 1580 r/min Medium temperature [tR] 40 °C Protection Mode IP 54 Efficiency Class IE5 K-Factor 265 Weight [m] 27 kg Dimensions [L / W / H] 635 mm / 635 mm / 507 mm
