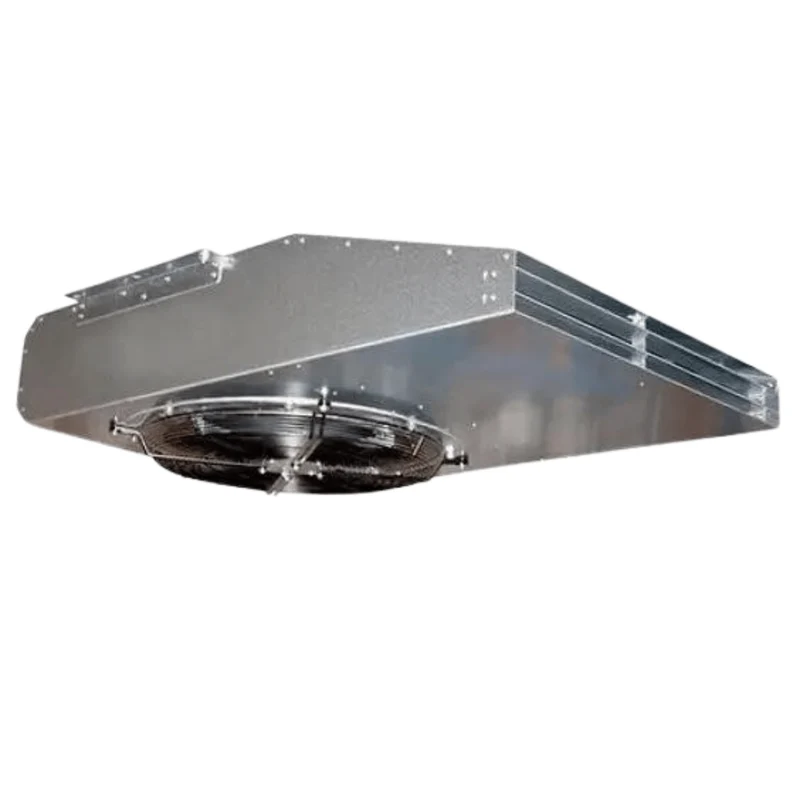

Vents-US ICF-100N-4/8-300/2 Commercial Parking Garage Exhaust Fan with Danfoss VLT Micro Drive

ICF-100N-4/8-300/2 Commercial Parking Garage Exhaust Fan – High-Performance Ventilation Smoke Extraction.

Save over 50%, quantities very limited!

The ICF-100N-4/8-300/2 is a three-phase, 400V/50-60Hz parking garage exhaust fan featuring induction centrifugal technology for efficient ventilation in underground and semi-open parking areas. Engineered for both general air circulation and critical smoke extraction, it operates at 300°C for up to 2 hours, making it a reliable component of fire safety systems.

Key Features:

• High-Speed, High-Pressure Airflow – Generates a powerful, directed air jet for effective ventilation.
• Smoke Extraction Capability – Designed to aid in fire safety and smoke removal.
• Durable, Low-Profile Design – Polymer-coated steel casing is built for longevity and ideal for low-ceiling installations.
• Safety Features – Intake protective grille prevents debris entry; deflector plates optimize airflow distribution.
• Easy Ceiling Installation – Mounts securely using included fixing brackets.
  Internal Terminal Box – Simplifies power connection for seamless setup.

The ICF-100N-4/8-300/2 is an efficient, high-performance solution for parking garage ventilation, offering durability, reliability, and fire safety compliance. Ensure proper installation and wiring per included instructions and terminal box diagram.

Specific Features:

• ICF-- 3 phase 400 Volt/50 HZ 60 HZ with Micro drive and Operating temp of 300 Celsius for 2 Hrs
• Max 6000 CFM (high speed)
• Power usage 2.8Kw
• Operating temp -25 to 300D C (2 hrs)
• Weight- 305 lbs
• 78 DB sound pressure

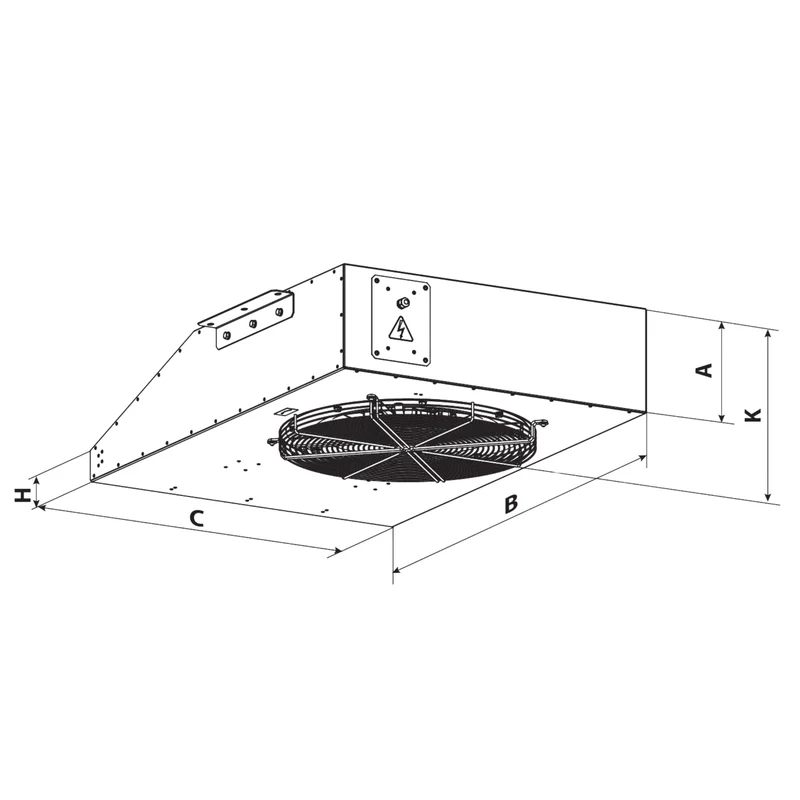

• 13"H x 63"L x 44"W
